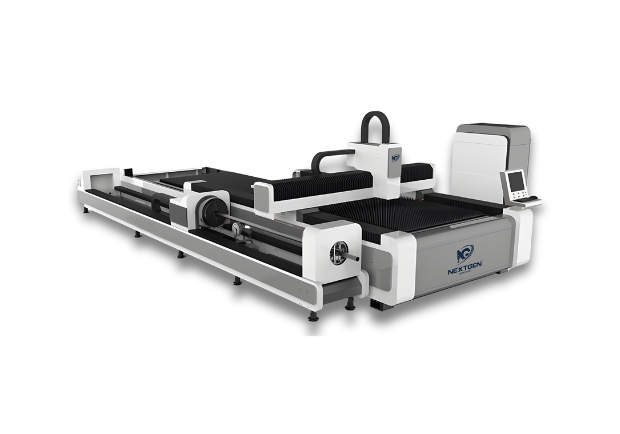

FIBER LASER CUTTING MACHINE WITH TUBE CUTTING
ProductKey Features
- AUTOMATION AND INTEGRATION
- DUAL USE AND COST SAVING
- FULLY AUTOMATIC DOUBLE PNEUMATIC CHUCK
- SPEED AND EFFICIENCY
Technical Parameters
| MODEL | NLT-1530 STX | NLT-2040 STX | NLT-2065 STX | NLT-2565 STX |
|---|---|---|---|---|
| Working Area | 1550x3050mm | 2050x4050mm | 2050x6550mm | 2550x6550mm |
| Acceleration | 1.0G | 1.0G | 1.0G | 1.0G |
| Max Running Speed | 120m/min | 120m/min | 120m/min | 120m/min |
| Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Pipe shape | Square Tube / Round / Rectangle | Square Tube / Round / Rectangle | Square Tube / Round / Rectangle | Square Tube / Round / Rectangle |
| Tube Size Range | ||
|---|---|---|
| T160: Round | φ16-φ155mm | |
| T160: Square | a16-a155mm | |
| T160: Rectangular | Long Sides ≤ 155mm | |
| T220: Round | φ20-φ220mm | |
| T220: Square | a20-a220mm | |
| T220: Rectangular | Long Sides ≤ 220mm | |
