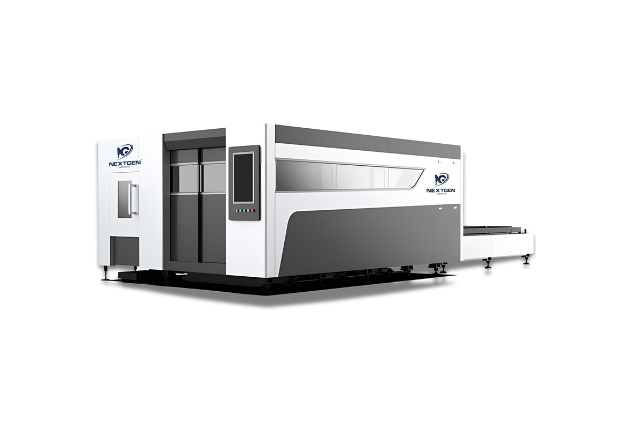

FULLY ENCLOSED FIBER LASER METAL CUTTING MACHINE
ProductKey Features
- ULTRA HIGH POWER AUTO FOCUS CUTTING HEAD
- DUST REMOVAL SYSTEM
- HEAVY DUTY HOLLOW MACHINE TABLE DESIGN AND STRUCTURE DESIGN
- SAFETY AND ENVIRONMENTAL PROTECTION MACHINE
Technical Parameters
| MODEL | NLT-1530 CX | NLT-2040 CX | NLT-2065 CX | NLT-2565 CX |
|---|---|---|---|---|
| Laser Power | 1500W-6000W | 1500W-6000W | 1500W-6000W | 1500W-6000W |
| Working Area | 1550x3050mm | 2050x4050mm | 2050x6550mm | 2550x6550mm |
| Acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
| Max Running Speed | 120m/min | 120m/min | 120m/min | 120m/min |
| Pallet Exchange Time | 30s | 40s | 45s | 55s |
| X/Y Axis Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| X/Y Axis Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
